Hardware

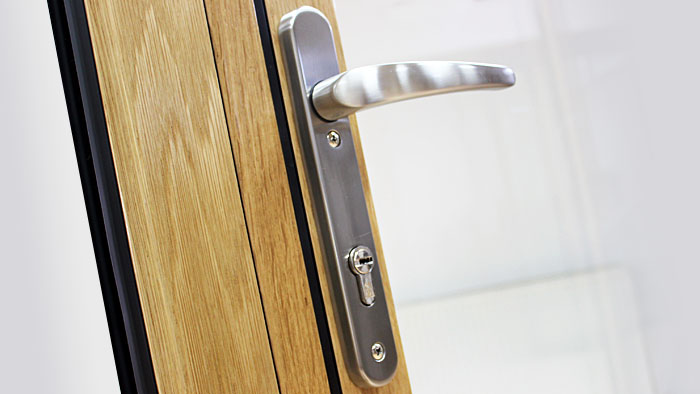

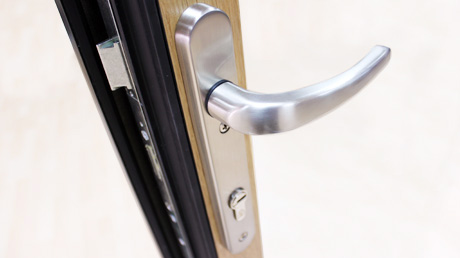

Lever Handle
An aesthetically pleasing and durable door handle range.
- This ergonomically designed door handle range is engineered to fit all major modern door bolt locking systems (92mm Centres)
- The Handles are non-handed allowing them to be used as either a left or right hand handle (supplied with spring cassette)
- Available in White, Black, Gold, Chrome, Satin Nickle.
- Supplied with spindles and 2 sets of screws to suit profiles 58-70mm
Technical Information
Assessment Data
Performance tested to 100,000 operations
Corrosion resistance: All finishes meet the requirements of BS EN 1670 - grade 5 (500 hrs Salt Spray)
Material Specification
Handle/Backplate: Zinc Alloy BS1004A or aluminum A360
Spindle: Steel C1008, Zinc plated and yellow passivated
Powder Coating: White and Black, 60 microns minimum coating thickness
PVD/Chrome Coating: Gold/Chrome/Satin Nickle multiple layer plating process

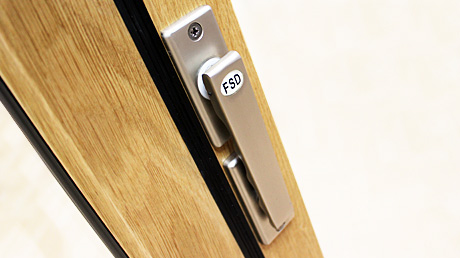

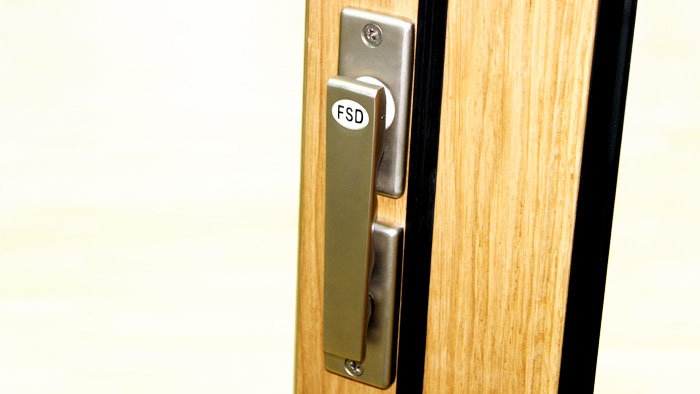

Flat Handle
This uniquely designed flat handle blends a slim line appearance with a precision engineered function.
The modern yet contemporary design allows folding door panels to stack effortlessly neatly together maximising the unobstructed opening.
- This ergonomically pleasing flat handle range is engineered to fit all major modern door bolt locking systems
- The Handles are non-handed allowing them to be used as either a left or right hand handle
- Available in White, Black, Gold, Chrome, Satin Nickle
- Supplied with spindles and 2 No. self tapping screws.
Technical Information
Assessment Data
Performance tested to 100,000 operations
Corrosion resistance: All finishes meet the requirements of BS EN 1670 - grade 5 (500 hrs Salt Spray)
Material Specification
Handle/Backplate: Zinc Alloy BS1004A or aluminum A360
Spindle: Steel C1008, Zinc plated and yellow passivated
Powder Coating: White and Black, 60 microns minimum coating thickness
PVD/Chrome Coating: Gold/Chrome/Satin Nickle multiple layer plating process

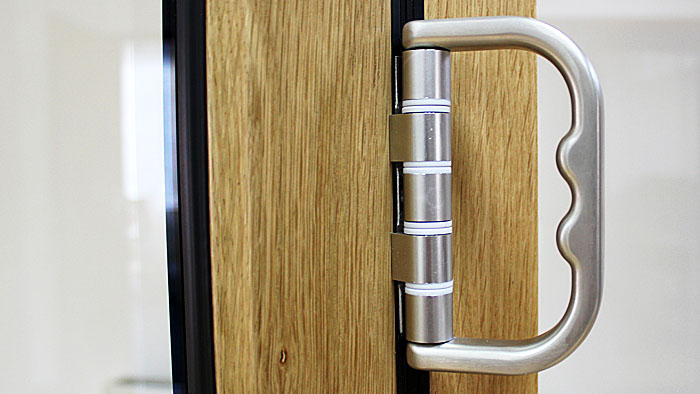

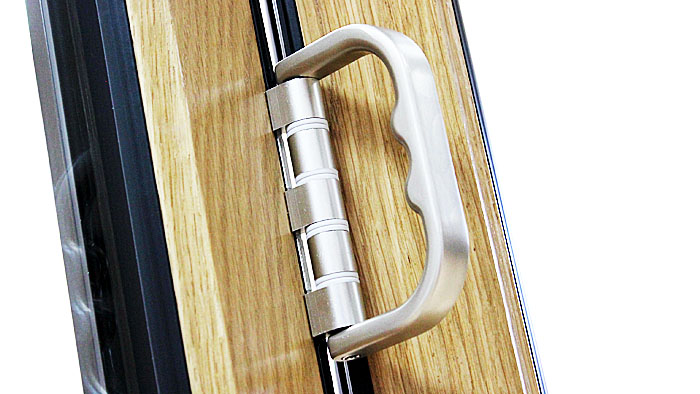

Pull Handle
Technical Information
Material Specification
Pull Handle: Aluminium Alloy
Powder Coating: White, Black, 60 microns minimum coating thickness
PVD/Chrome Coating: Satin Nickle multiple layer plating process

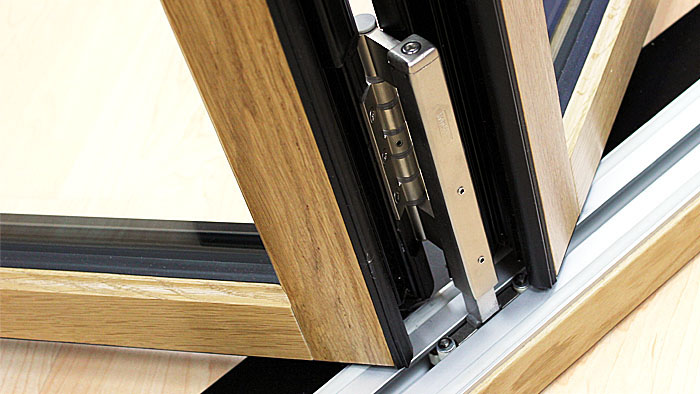

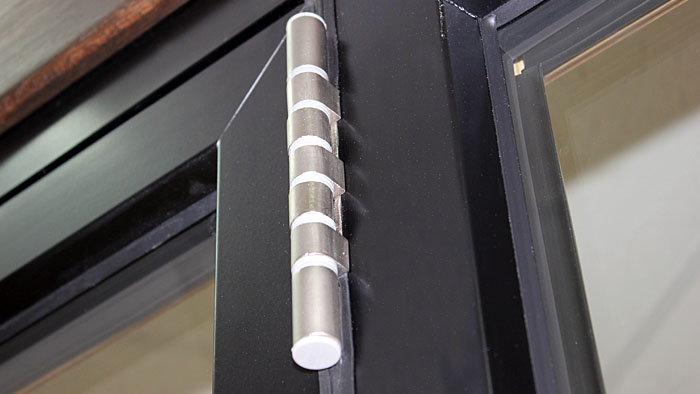

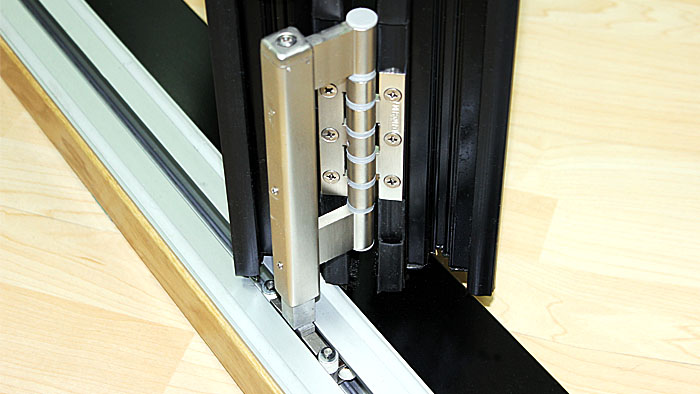

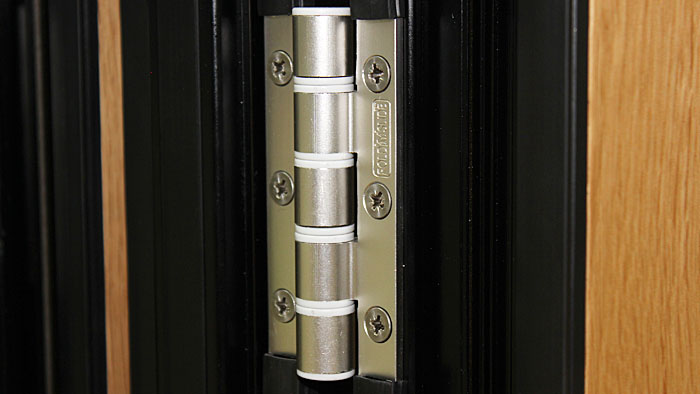

Butt Hinges
- Heavy duty security folding door butt hinges
- security is provided via the secret grub screw (non visible)
- Available in White, Black, Satin Nickle
Technical Information
Assessment Data
Performance tested to 100,000 operations
Corrosion resistance: All finishes meet the requirements of BS EN 1670 - grade 5 (500 hrs Salt Spray)
Material Specification
Hinge Body: Zinc Alloy BS1004A
Top/Bottom Bush: Nylon 6
Pins: Stainless Steel
Powder Coating: White, Black, 60 microns minimum coating thickness
PVD/Chrome Coating: Gold/Chrome/Satin Nickle multiple layer plating process

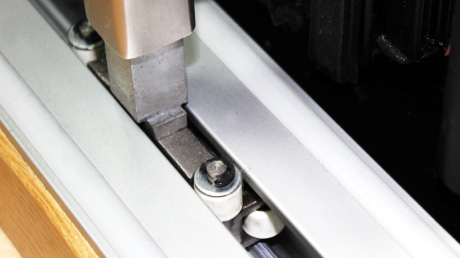

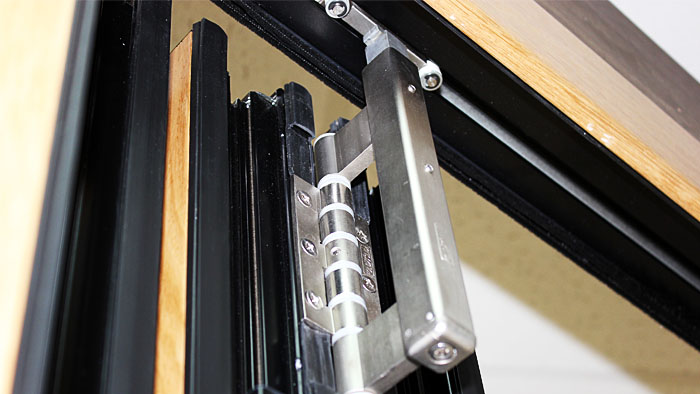

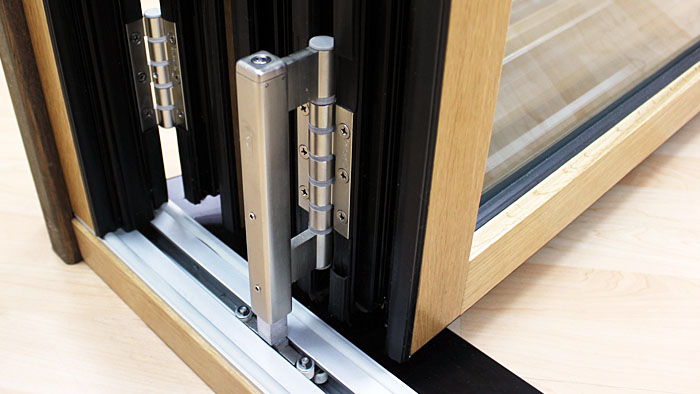

Roller
Heavy duty roller system complete with stainless steel wheels
- An aesthetically pleasing and durable Roller System
- This ergonomically designed heavy duty roller system comes complete with stainless steel wheels
- The rollers system incorporate sealed bearingsdurable and stable construction
- fully adjustable for optimum performance
- Available in White, Black, Satin Nickel & Stainless Steel
Technical Information
Assessment Data
Performance tested to 100,000 operations
Corrosion resistance: All finishes meet the requirements of BS EN 1670 - grade 5 (500 hrs Salt Spray)
Material Specification
Roller Shaft/Carrier: Aluminum A360/Stainless Steel
Roller Wheels/Carriage: Steel/Stainless Steel
Powder Coating: White and Black, 60 microns minimum coating thickness
